| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | FE20 |
| Minimum Order Quantity: | 1 Set |
| Price: | 12000-15000 USD |
| Packaging Details: | Nude , 8 sets in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Supply Ability: | 300 sets / month |
| Rate Loading: | 2000 Kg | Load Center: | 500 Mm |
|---|---|---|---|
| Battery Type: | Lead Acid | Wheel Base: | 1500 Mm |
| Tire Type: | Air,2F*2R Tire | Front Tire: | 7.0-12-12PR |
| Rear Tire: | 18*7-8PR | Overhead Guard Height: | 2140 Mm |
| Max.Extended Height: | 4030 Mm | Right-Angle Store Aisle: | 3930 Mm |
| Overall Length(without Fork): | 2400 Mm | Overall Width: | 1160 Mm |
| Overall Height(Mast Closed): | 2140 Mm | Total Weight(with Battery): | 4200 KG |
| Highlight: | 2000KG Load Capacity Electric Powered Forklift,3000mm Lifting Electric Powered Forklift |
||

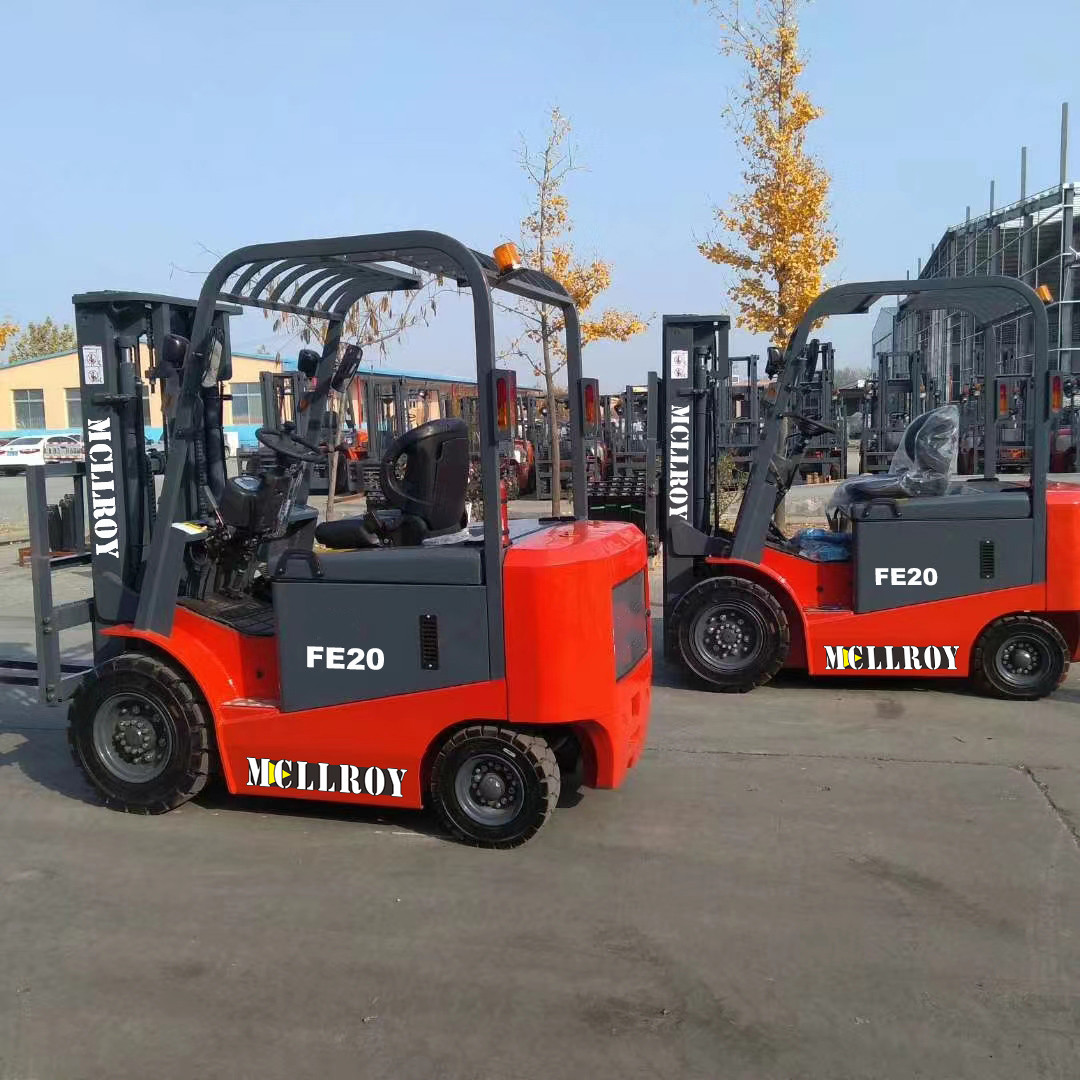

1. Products Description of MCLLROY Electric Forklift
Looking for a durable, highly resilient material handling solution which isn’t going to burn your pocket? Designed for heavy-duty applications, the A-series 4-wheel electric forklift guarantees superior performance and long operating time in indoor applications such as pallet racking, outdoor yard or loading bay area.
Information on our four wheel electric forklifts for sale, including load capacity, lift height, mast type, can be found below.
2. Specification
| FE20 | FE25 | FE15 | |
| Rate Loading Weight | 2000 KG | 2500 KG | 1500 KG |
| Mast Stage | 2 | 2 | 2 |
| Lifting Height | 3000 mm | 3000 mm | 3000 mm |
| Driven Motor Power(60 min) | 9 KW | 9 KW | 7.5 KW |
| Oil Pump Motor Power(15 min) | 11 KW | 11 KW | 7.7 KW |
| Battery | 48V/600Ah | 48V/600Ah | 48V/420Ah |
| Battery Box Size | 500*900*760 mm | 500*900*760 mm | 440*830*780 mm |
| Motor& Controller Type | AC | AC | AC |
| Transimission | Auto | Auto | Auto |
| Fork Size | 1070*122*40 mm | 1070*122*40 mm | 100*35*1070 mm |
| Tire Type | Air | Air | Air |
| Front Tire | 7.00-12-12PR | 7.00-12-12PR | 6.50-10-10PR |
| Rear Tire | 18*7-8PR | 18*7-8PR | 5.00-8-10PR |
| Overhead Guard Height | 2140 mm | 2140 mm | 2120 mm |
| Max.Extended Height | 4030 mm | 4030 mm | 4020 mm |
| Right-Angle Store Aisle (pallet 1200*1200mm) |
3930 mm | 3950 mm | 3770 mm |
| Overall Length(without fork) | 2360 mm | 2400 mm | 2250 mm |
| Overall Width | 1160 mm | 1160 mm | 1075 mm |
| Overall Height(Mast closed) | 2140 mm | 2140 mm | 2120 mm |
| Total Weight(with battery) | 4200 KG | 4200 KG | 3100 KG |
| Front Overhang | 448 mm | 485 mm | 410 mm |
| Angle of Mast inclination (forward /backward) |
6°/12° | 6°/12° | 6°/12° |
3. Details and Advantages of MCLLROY Electric Forklift
1) Soft-landing system is equipped when forks are 60-100mm to the ground, avoiding damage of the ground and protection to the goods
2) High frequency MOSFET controller provides accurate control of travelling
3) Broad view mast provides better forward view ability
4) Easy access to the side battery
5) Key components are fitted using industry recognized brands, ensuring maximum reliability
4.Why Choose Us
A solid reputation from customers is based on strong quality.
With 40 years experience of exporting machinery, MCLLROY machines has reached out to
many countries in Southeast Asia, East Europe, West Africa, South-America and established long-term strategic cooperation with local distributors.
Our strict quality control ease the maintenance and lower the spare parts replacement rate
hence less complaint come from clients and users.
We are proud to promise that all of our machines along with their spare parts are brand new. Ten units will be given away if any used machines is found !!!
