| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MB30-40 |
| Minimum Order Quantity: | 1 Set |
| Price: | 20000-27000 USD |
| Packaging Details: | Nude , 1 sets in 1 40HQ |
| Delivery Time: | 35 DAYS |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 30 SETS PER MONTH |
| Rated Load: | 3000 Kg | Max. Digging Depth: | 4000 Mm |
|---|---|---|---|
| Rated Power: | 75-97 Kw | Bucket Capacity: | 1.5 M³ |
| Dig Bucket Capacity: | 0.3 M³ | Axle: | Large Hub |
| Min. Turning Radius: | 5018 Mm | Tire Model: | 16/70-24 |
| Highlight: | 1.5m3 Bucket Capacity Compact Backhoe Loader,3 Ton Loading Compact Backhoe Loader |
||

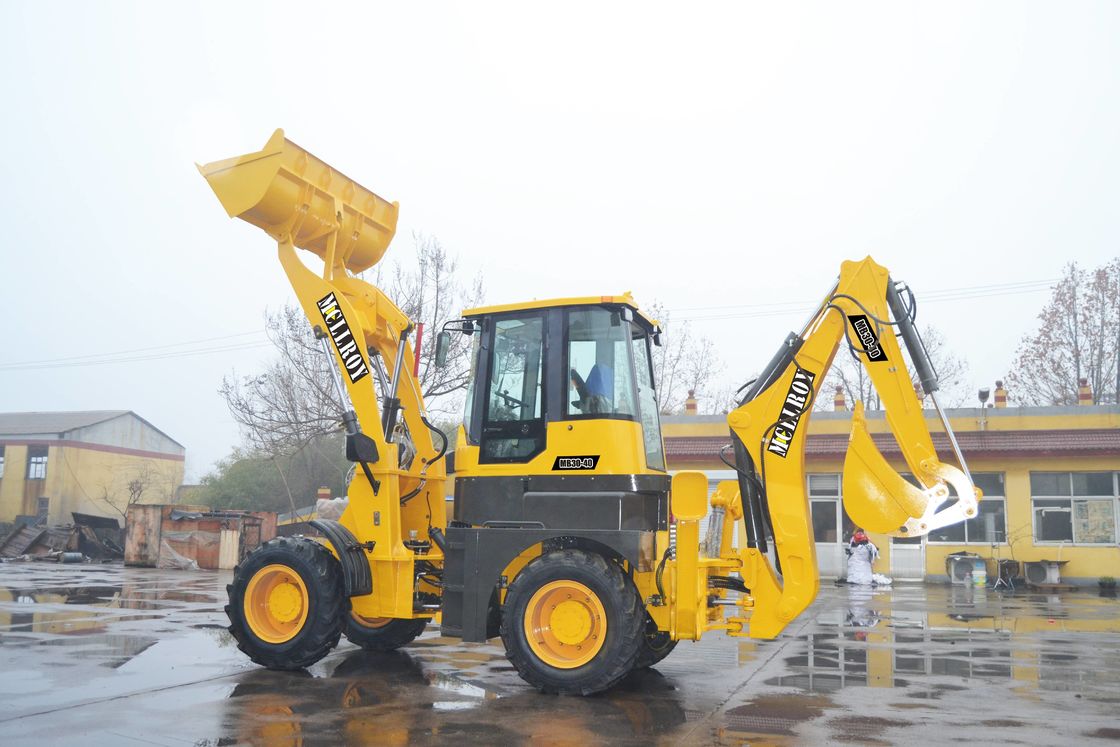

Combining exceptional value for money, superior strength, and a plethora of innovative features, the MCLLROY MB30-40 solidifies itself as another outstanding machine from the world's leading backhoe manufacturer. It stands out in terms of productivity, performance, and efficiency, making it the perfect solution for large fleets, rental yards, and smaller businesses alike.
Unmatched Value for Money
The MCLLROY MB30-40 backhoe offers a low cost of ownership and remarkable strength as standard. Coupled with the industry's best warranty, it provides customers with unparalleled return on investment.
Embedded Innovation
This machine incorporates a range of innovative features that have established MCLLROY backhoes as leaders in productivity, performance, and efficiency.
Exceptional Durability and Support
The MB30-40 is designed with durability in mind, ensuring it can withstand the demanding conditions of the rental industry. Additionally, it comes with a superior aftercare package and an extended warranty, further enhancing customer satisfaction.
Low Maintenance Engine
Equipped with the MCLLROY eco engine, a highly efficient EU V Emission engine, the MB30-40 eliminates the need for costly diesel particulate filter (DPF) technology. This results in reduced servicing and refueling costs.
Excellence Across Industries
The MB30-40 is the go-to solution for large fleets, rental yards, and owner operators across various industries. Its versatility and performance make it the preferred choice in any field of operation.
When it comes to the MCLLROY MB30-40 backhoe loader, you can be confident that it is built to withstand any challenge. Its structural parts are robust and resilient, and key components are well-protected from potential harm.
Protection from Damage
1. MCLLROY MB30-40 stabilizer cylinder guards are fitted as standard to minimize downtime by protecting the backhoe from potential costly damage.
2. The boom and dipper hoses are enclosed inside the rear structures of the machine to safeguard them from the challenges of trenchwork. Stabilizer leg hoses are also protected to prevent damage from material spillage during excavator use.
3. Kingpost hoses are enclosed in a flexible and robust guide to prevent snagging or damage.
4. The steering cylinders are positioned high up behind the front axle, providing additional protection when moving over challenging terrain.
| Performance | Length x Width x Height:7000 x 2,300 x 3,100MM |
| Cab Roof Height: 2,900MM | |
| Wheel Base: 2,250MM | |
| Track: 1,640MM | |
| Min. Ground Clearance: 300MM | |
| Total Weight: 6800KG | |
| Maximum Speed: 35Km/h | |
| Maximum Grade ability Capacity: 30° | |
| Loading Bucket Capacity: 1.5CBM | |
| Loading Capacity: 2,800KG | |
| Bucket Discharge Distance: 1,048MM | |
| Backhoe Bucket Capacity: 0.3CBM/600MM width | |
| Backhoe Discharge Height: 3,878MM | |
| Maximum Digging Depth: 4,000MM | |
| Minimum Turning Radius: 5,688MM | |
| Bucket Slewing Angle: 180° | |
| Diesel Engine | Model: Yuchai turbocharged engine |
| Engine Power:85KW | |
| Type: Inline, direct injection, four-stroke, liquid cooled | |
| Optional engine: same with offer sheet | |
| Rated Speed: 2,400RPM | |
| Transmission System | Type of Hydraulic Pump: Fixed shaft power shift transmission |
| Gear Shift: 2 forward shift 2 reverse shift | |
| Torque: YJ-280 | |
| Pump: 2*63 model | |
| Steering System | Type: Articulated hydraulic steering |
| Steering Angle: 36° | |
| Minimum Turning Radius: 5,018MM | |
| Axles | Heavy big reducer axle |
| Tyre | 16/70-24 |
| Brake System | Service Braking: Air over hydraulic disc on 4 wheels |
| Parking Brake: Manual parking brake | |
| Hydraulic System | System Flow: 140L/Min |
| Bucket Digging Capacity: 46KN | |
| Bucket Stick Digging Capacity: 31KN | |
| Bucket Hydraulic Translation Function: Yes |
OPTIONAL ENGINE:
Cummins EuⅢ standard QSB3.9-C100 model(75kw)
YUCHAI YCD4J22T-115 China 2 standard engine (85kw)
Cummins China 2 standard engine 4BT3.9-C100(75kw/4 cylinders)
Cummins China 2 standard engine 6BT3.9-C130(97kw/6 cylinders)
YUCHAI EU V standard engine YCF36125- S500(90kw/4 cylinders)
The MCLLROY MB30-40 is a highly versatile machine in its standard configuration, but its flexibility and productivity can be further enhanced with our factory-approved optional extras.
4-in-1 Loader Bucket
This highly versatile tool enables you to perform a wide range of tasks such as digging, dozing, loading, grabbing, grading, and backfilling. It serves as a comprehensive solution for multiple applications. Quickhitch options are available for convenient attachment changes, maximizing efficiency and productivity.
Heavy-Duty Bucket
The heavy-duty bucket is specifically designed with extra ribbed plates to provide enhanced strength and reduce wear when working with tougher materials.
Extending Dipper
By opting for the extending dipper feature, you can increase the working range of your backhoe loader. The innerbox design ensures superior lift capacities and facilitates easy field servicing, providing added convenience and efficiency.
Auxiliary Circuits
MCLLROY offers auxiliary circuits that significantly enhance the versatility of the MB30-40 . The inclusion of a hammer circuit allows you to utilize breakers, patch planers, and other powerful attachments, expanding the range of applications for your machine and increasing its capabilities.
