| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL940 ZL940 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Rated Power: | 76kw | Bucket Capacity: | 1.2m3 |
|---|---|---|---|
| Rated Load: | 2200kg | Max.Dump Clearance: | 3500mm |
| Dumping Height: | 3500mm | Overall Size (L*W*H): | 6330*2170*3080mm |
| Emissions: | EU Stage II | Operating Weight: | 6100 Kg |
| Max. Travel Speed: | 28 Km/h | Gear Box: | CVT 280 Torque Converter |
| Axle: | Large Hub Reductro | Axle Base: | 2560 Mm |
| Brake: | Disc Brake | Hydraulic Cycle Time - Lift: | ≤ 6 S |
| Min. Ground Clearance: | 400 Mm | Wheel Base: | 1640 Mm |
| Reach At Max.Dump Height: | 3600 Mm | Dump Reach: | ≤ 650 Mm |
| Overall Length - With Bucket: | 6240 Mm | Overall Width: | 2040 Mm |
| Highlight: | Mechanical Joystick Mini Compact Loader,CVT 280 Torque Mini Compact Loader |
||

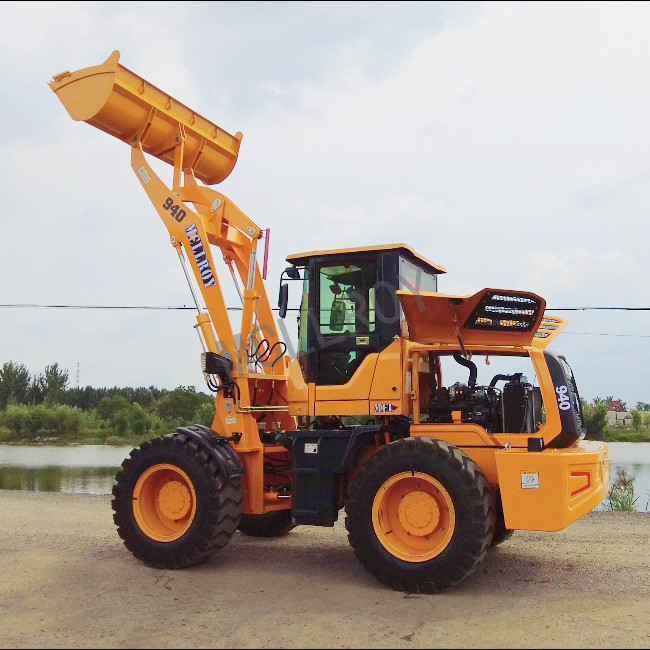

1. Products Description of MCLLROY Wheel Loader
The MCLLROY wheel loader has gained immense popularity in the construction, agriculture, and gardening industries, owing to its exceptional quality, efficiency, and productivity. Its robust engine and sturdy chassis enable it to handle tough muddy terrain, while its versatile turning system makes it perfect for navigating tight spaces. Additionally, its impressive unloading height makes it a valuable asset for loading tasks.
When it comes to the axle of this loader, we prioritize the use of cast steel small axle housing over other options available in the market, such as iron or Isuzu axles. The axles play a crucial role in the loader's overall performance and stability, particularly when dealing with severe working conditions that exert significant internal forces. A top-quality axle ensures that operators can operate the loader safely and confidently, which ultimately leads to maximum productivity.
2. Specification of MCLLROY Wheel Loader
| MCL 940 | |
| Engine Model | Yun Nei 4102 Supercharged |
| RPM | 2400 |
| Rated Power | 76 kW |
| Emissions | EU Stage II |
| Operating Weight | 6100 kg |
| Rated Load | 2800 kg |
| Bucket Capacities | 1.2 m³ |
| Max. Travel Speed | 28 km/h |
| Gear Box | CVT 280 torque converter |
| Axle | Large hub reductro |
| Axle Base | 2560 mm |
| Brake | Disc Brake |
| Hydraulic Cycle time - lift | ≤ 6 s |
| Min. Ground Clearance | 400 mm |
| Wheel Base | 1640 mm |
| Reach at Max.Dump Height | 3600 mm |
| Dump Reach | ≤ 650 mm |
| Overall Length - With Bucket | 6240 mm |
| Overall Width | 2040 mm |
| Overall Height | 2830 mm |
| Tyre Size | 1670-24 |
| Joystick | Mechanical |
| Min. turning radius | ≤ 6200 mm |
| Hour meter | Yes |
| Tool Box | Yes |
| Dual Hight&Low Speed Handle | Yes |
3. Details and Advantages of MCLLROY Compact Wheel Loader
4.Production lines of MCLLROY Wheel Loader
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
The assembly process is a crucial step in the manufacturing of a loader, which involves the assembly of over a thousand parts. Our factory has a structured approach to assembly, which consists of seven major steps.
In the first step, our workers carefully assemble the front frame, rear frame, swing frame, front axle, and rear axle together. They then install the air tank, relief valve, and air booster pump on the frame, paying close attention to the tightness of the screws and adjusting the gap.
During this step, our workers ensure that the hinged part is not moving up and down and is tight enough to be shaken left and right. They also make sure that there is a gap between the swing frame and rear frame that can move up and down but not back and forth. In addition, gear oil is added to the front and rear axles to ensure their proper functioning.
The second step involves the installation of the hydraulic oil tank, engine, and steering pump. Our workers carefully install these components and ensure that they are functioning correctly.
In the third step, the cab is installed on the loader, and our workers ensure that it is secure and that all the electrical connections are properly installed.
In the fourth step, the loader arms and bucket are installed, and our workers ensure that they are functioning correctly and that there is no unwanted movement.
In the fifth step, the hydraulic hoses are connected, and our workers ensure that there are no leaks or malfunctions in the hydraulic system.
In the sixth step, the tires are installed, and our workers ensure that they are properly aligned, balanced, and inflated to the correct pressure.
Finally, in the seventh step, the loader is inspected for quality and functionality. Our workers conduct a thorough inspection to ensure that all components are functioning correctly and that the loader meets our high standards of quality.
Overall, our assembly process is a highly structured and precise process that ensures that each loader we produce is of the highest quality and meets our customers' expectations.
