| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE/ISO |
| Model Number: | MCL930 |
| Minimum Order Quantity: | 1 Unit |
| Price: | $4000-6000/ |
| Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
| Delivery Time: | 5-8 days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 100 Units / Month |
| Engine Model: | Changfa 490 /Yun Nei 490 | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 42 KW | Emissions: | EU Stage II |
| Rated Load: | 2000 Kg | Max. Travel Speed: | 28 Km/h |
| Gear Box: | CVT 265 Torque Converter | Alex: | Small Hub |
| Axle Base: | 2210 Mm | Brake: | Disc Brake |
| Hydraulic Cycle Time - Lift: | ≤ 7 S | Min. Ground Clearance: | 290 Mm |
| Wheel Base: | 1490 Mm | Reach At Max.Dump Height: | 3200 Mm |
| Dump Reach: | 700 Mm | Overall Length - With Bucket: | 5300 Mm |
| Overall Width: | 1820 Mm | Overall Height: | 2760 Mm |
| Tyre Size: | 20.5-16 | Joystick: | Machanical |
| Min. Turning Radius: | ≤ 7000 Mm | Hour Meter: | Yes |
| Highlight: | Job Sites Construction Wheel Loader,Preparing Job Sites Wheel Loader,Small Construction Wheel Loader |
||
1. Products Description of MCLLROY Wheel Loader
When it comes to construction equipment, it is imperative that it is capable of handling heavy-duty workloads with optimal efficiency. Take the example of a loader - the bucket should have a high capacity for shoveling material, while the loader itself should remain stable during operation. The controls should be flexible, user-friendly, and easy to use, and the equipment should have a low malfunction rate.

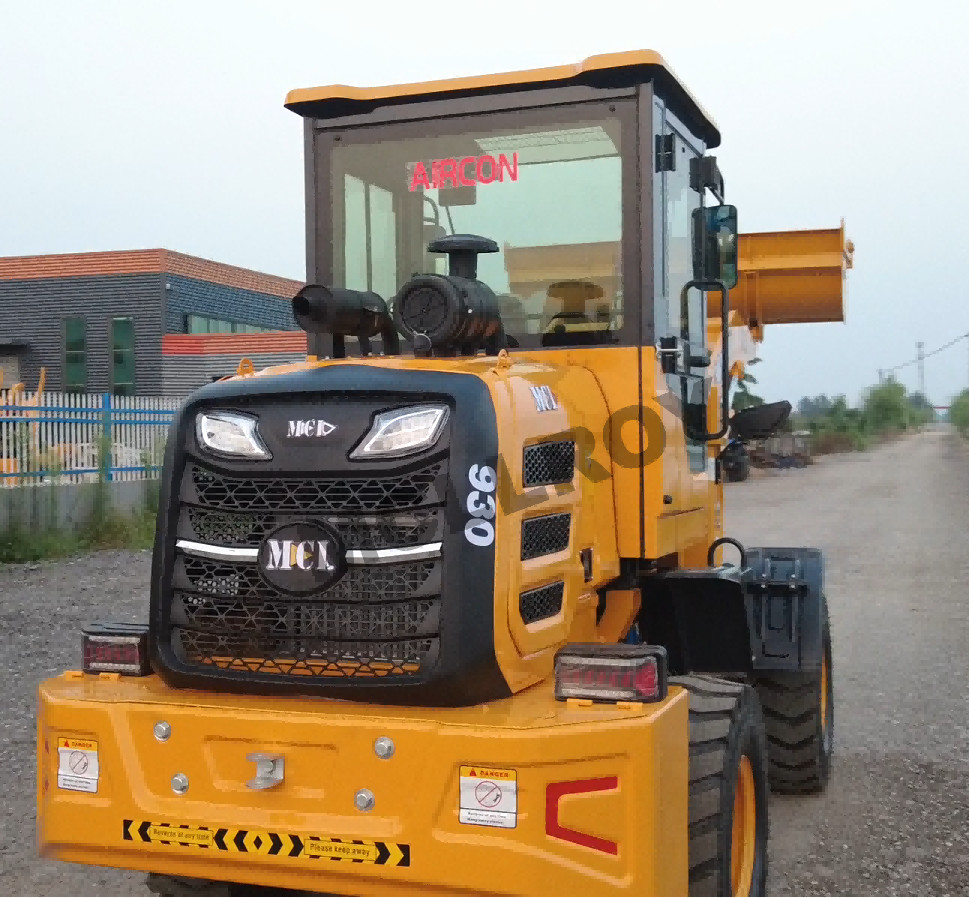

The MCLLROY Wheel Loader is a front-wheel loader with a single bucket, articulated structure, and hydraulic unloading capabilities. It has been meticulously designed and developed in line with the specific requirements of users, while also taking into consideration reference models that incorporate advanced structural features and technologies from both domestic and international markets.
2. Specification of MCLLROY Wheel Loader
| MCL 930 | |
| Engine Model | Yun Nei 490 |
| RPM | 2400 |
| Rated Power | 42 kW |
| Emissions | EU Stage II |
| Operating Weight | 3500 kg |
| Rated Load | 1600 kg |
| Bucket Capacities | 0.6-1.0 m³ |
| Max. Travel Speed | 28 km/h |
| Gear Box | CVT 265 torque converter |
| Alex | Small hub |
| Axle Base | 2210 mm |
| Brake | Disc Brake |
| Hydraulic Cycle time - lift | ≤ 7 s |
| Min. Ground Clearance | 290 mm |
| Wheel Base | 1490 mm |
| Reach at Max.Dump Height | 3200 mm |
| Dump Reach | 700 mm |
| Overall Length - With Bucket | 5300 mm |
| Overall Width | 1820 mm |
| Overall Height | 2760 mm |
| Tyre Size | 20.5-16 |
| Joystick | Machanical |
| Min. turning radius | ≤ 7000 mm |
| Hour meter | Yes |
| Tool Box | Yes |
| Dual Hight&Low Speed Handle | Yes |
3.Details and advantages of MCLLROY Wheel Loader
1) With a wide field of view, the cab facilitates work in all directions and ensures safe walking.
2) The engineering tires boast a rubber content of over 38%, ensuring optimal durability and performance.
3) The external distribution valve and removable fuel tank streamline servicing and maintenance.
4) The buckets adhere to construction standards and are suitable for heavy-duty work.
5) The upgraded side flip hood and crimped model counterweight contribute to a more visually appealing appearance.
6) The tiger head base design fortifies the dynamic arm, enabling it to withstand force with ease.
4. Inspection of MCLLROY Wheel Loader
The inspection procedure holds an equal status to any other process. Once the tire pressure, bucket level, hydraulic oil, bolts, track width, dashboard, and electrical system have been verified, and the road test has been conducted, MCLLROY technicians must conduct a meticulous inspection of the components listed in Part IV.
Documentation is a critical component of this inspection process. The user manual, loader certificate, engine certificate, maintenance guide, and warranty should be stored inside the cab. Moreover, safety warning signs and stickers must be affixed to the loader by the worker.
Upon the completion of the inspection process, the loader is now ready for delivery.
A thorough inspection and documentation of all components are vital to ensure the optimal performance and safety of the loader.
,
