| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL932 ZL932 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Engine Model: | Yun Nei 490 Supercharged | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 58 KW | Emissions: | EU Stage II |
| Operating Weight: | 3670 Kg | Rated Load: | 1800 Kg |
| Bucket Capacities: | 0.6-1.0 M³ | Max. Travel Speed: | 28 Km/h |
| Gear Box: | CVT 265 Torque Converter | Axle Base: | 2210 Mm |
| Brake: | Air Brake | Hydraulic Cycle Time - Lift: | ≤ 7 S |
| Min. Ground Clearance: | 290 Mm | Wheel Base: | 1490 Mm |
| Reach At Max.Dump Height: | 3200 Mm | Dump Reach: | ≤ 650 Mm |
| Overall Length - With Bucket: | 5300 Mm | Overall Width: | 1820 Mm |
| Overall Height: | 2670 Mm | Tyre Size: | 20.5-16 |
| Breakout Force: | 40 KN | Joystick: | Mechanical |
| Highlight: | Multifunctional Hydraulic Front Loader,Hydraulic Front Loader 2400RPM,Front Bucket Wheel Loader |
||
1. Products Description
we need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.

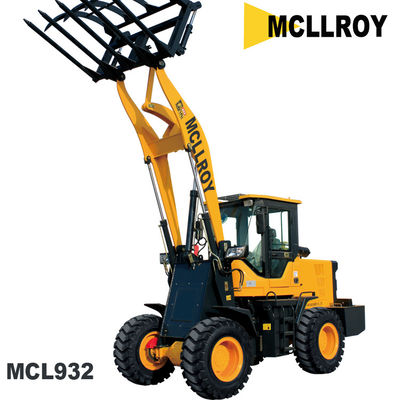

MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.
2. Specification
| MODEL | MCL 932/ZL 932 | Metric Units |
| ENGINE | Engine Model | Yun Nei 490 Supercharged |
| RPM | 2400 | |
| Rated Power | 58 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 3670 kg |
| Rated Load | 1800 kg | |
| BUCKETS | Bucket Capacities | 0.6-1.0 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT 265 torque converter |
|
| Alex | Small hub | |
| Axle Base | 2210 mm | |
| Brake | Disc Brake | |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 7 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 290 mm |
| Wheel Base | 1490 mm | |
| Reach at Max.Dump Height | 3200 mm | |
| Dump Reach | ≤ 650 mm | |
| Overall Length - With Bucket | 5300 mm | |
| Overall Width | 1820 mm | |
| Overall Height | 2670 mm | |
| OPERATING SPECIFICATIONS | Tyre Size | 20.5-16 |
| Breakout Force | 40 KN | |
| Joystick | Machanical | |
| Min. turning radius | ≤ 7000 mm | |
| STANDARD EQUIPMENT | Hour meter | Yes |
| Tool Box | Yes | |
| Dual Hight&Low Speed Handle | Yes | |
| OPTIONAL EQUIPMENT | Air Conditioning/heater | Option |
| Quick Change | Option | |
| Multifunctional Attachment | Option | |
| Hydraulic Pilot | Option |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Tire:A variety of patterns to adapt to different perorations ,solid tires available.
2) Frame:Strong hinge joint.
3) Cab:
I. Electronic oil level indicator.
II. Comfortable seat with safety belt.
III. Intelligent instrument.
IV. Pilot valve hydraulic operation.
4) Wide-opening hood for easier servicing & maintenance of engine.
5) MCLLROY design engine cover,automatic power-off electronic flame-out ,no knife.
4. Inspection
The inspection is as important as any other procedure. After checking the tire pressure,level of bucket,hydraulic oil,bolts, track width ,dashboard and electrical system , MCLLROY technicians usually need to inspect the followings(Parts III) :
1) Do the road test for 3 to 6km. If the water temperature is below 100 deg celcius after the road test, that is qualified, otherwise, technician will check where the problem is.
2) And then check if the lubricant oil pressure is normal;
3) Use thermometer to test the temperature of gearbox and hydraulic oil.
4) Touch the air pump by hand;
5) Check for abnormal noise, oil leakage.
6) Do the brake performance test :drive the loader on a 45-degree slope, step on the brake and do not let go, it's okay if the loader does not move.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
